The goal of the project was to perform beam vibration measurements, plot them over time, and compare
them to the theoricial results.

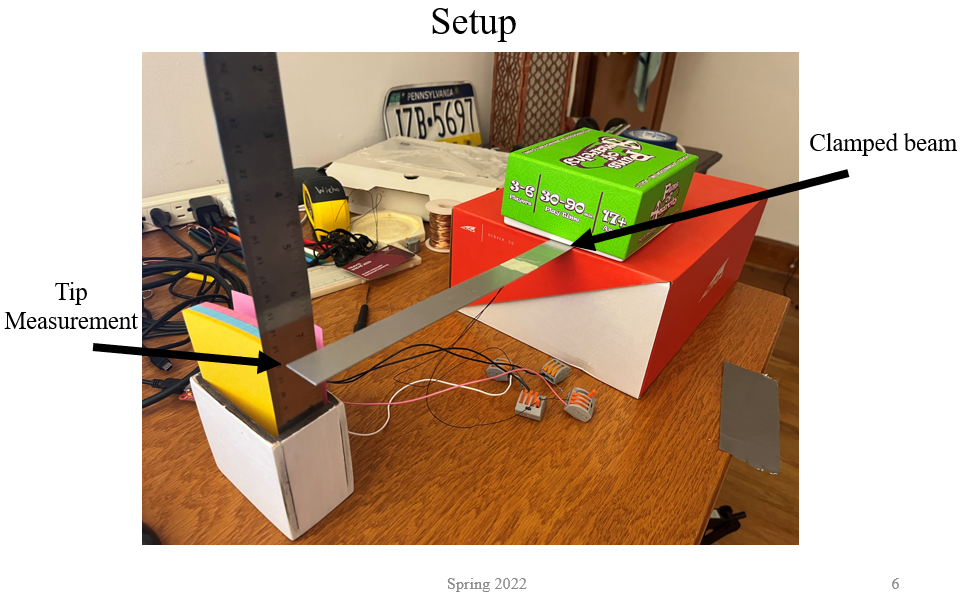

I placed a strain gauge on a metal ruler and was able to strain at a given time in the beam. Below is my
experimental setup.
Using this setup I placed different amounts of coins on the end of the beam and measured the
displacment. From this I was able to
calculate the beam stiffness

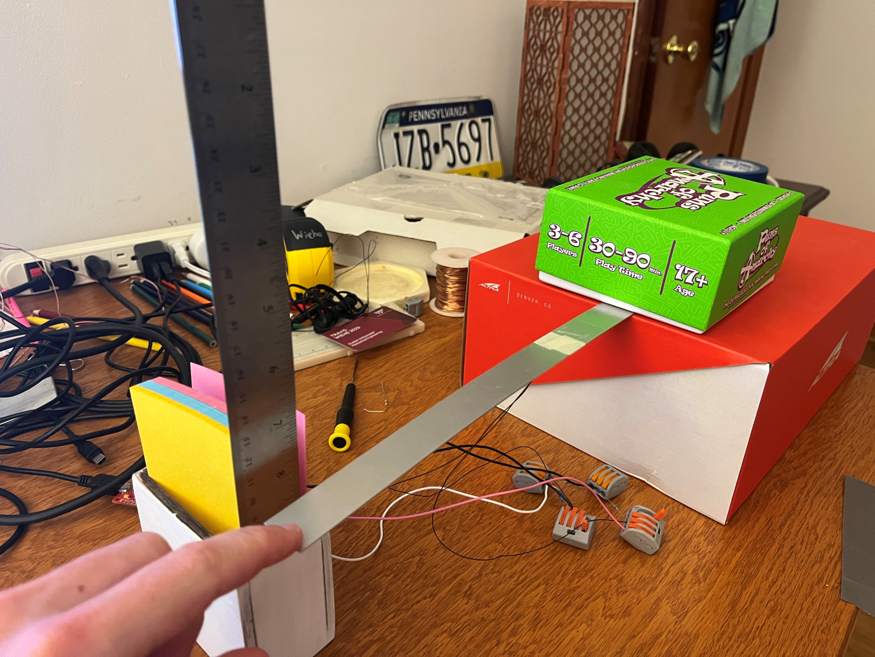

Using the stiffness coefficient I could do some dynamic testing with the beam. By placing my finger on
the end of the beam and pushing down
I created some initial displacment in the tip of the beam.

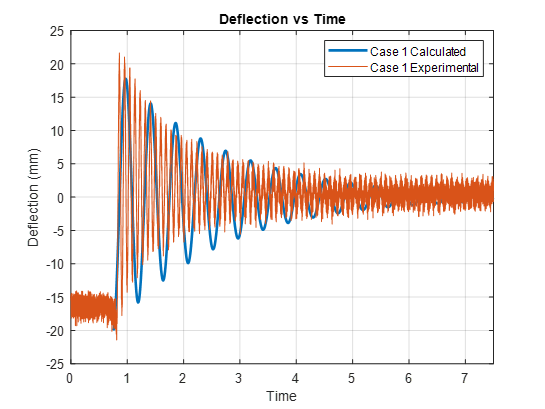

When I released my finger the beam vibrated up and down as I recorded the strain data. This strain data
was then converted into tip position data
that is seen below.
This data was them compared to the mechanical vibrations equations for a beam. The data was a close
match and validated the theoricial equations and the experimental results.
|
|
